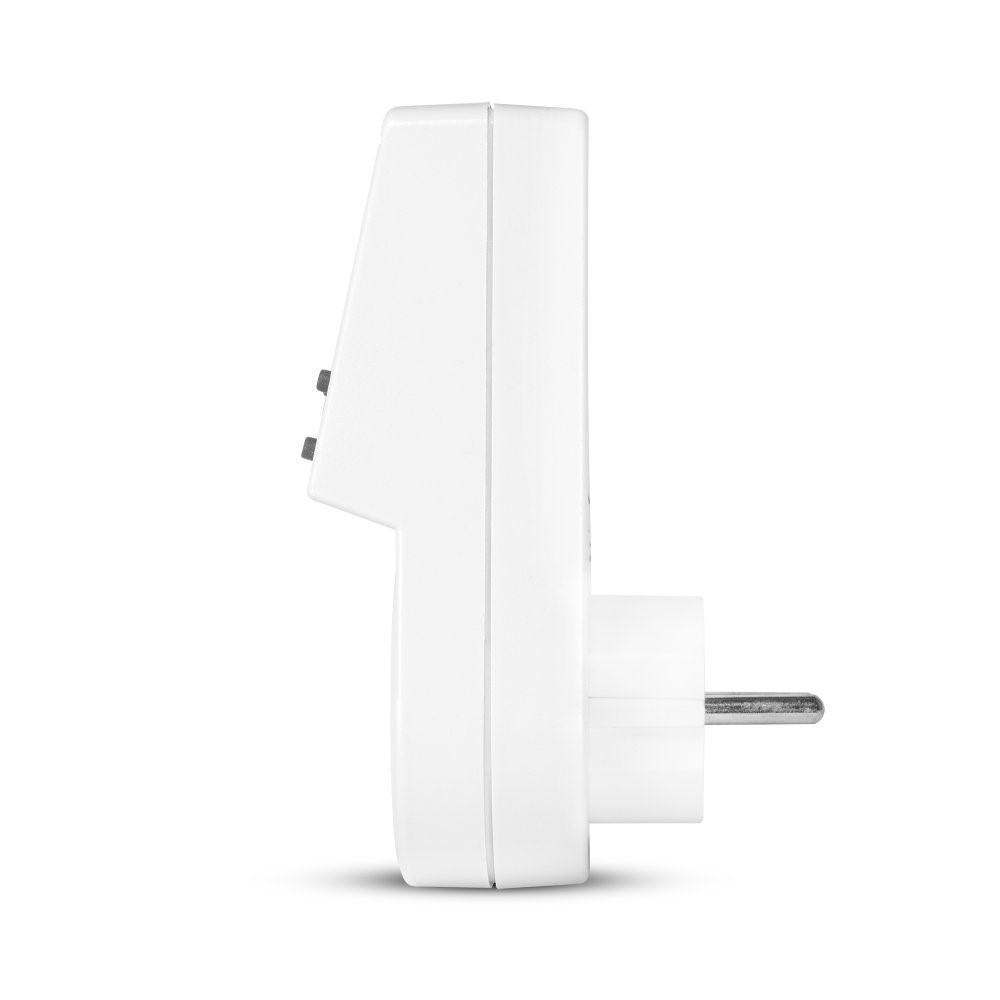

Digital switching clock for increased inductive load

Timer for switching sockets , weekly , programmable, digital .

Thanks to this digital switch socket, you can switch mains appliances on and off at set times. This switch clock has a daily and weekly switching cycle , very simple operation and built-in Summertime and Random functions. Possibility of 10 adjustable time programs, which can be used to switch on and off the appliances you have connected.

Max. the switched power of the time switch is 3500W.

Programming is very simple , so the clock is suitable even for people with a negative attitude towards technology.

Functions of the ZSD-16 time switch:

- 10 adjustable time programs
- 16 combinations of days or blocks of days. This function allows you to run time programs on specific days, e.g. Sat–Sun, Mon–Wed–Fri, etc.
- Possibility of manual or automatic control.
- 12/24 hour cycle option.
- Another function is to set daylight saving time. By switching to this function, 1 hour is automatically added to the set time.
- The device contains a rechargeable battery that will keep it running for more than 100 hours after the power is disconnected.

When purchasing a new device or when the battery is discharged, the charging cycle takes approximately 12 hours.

Examples of using ZSD-16:
Irrigation, circulation pump, aquarium lighting

Other examples of use: heating in the morning to wake you up, limiting the time children watch TV, warming up the garage before you would otherwise have to get into a "frozen car" and not be able to start it properly for the winter. The best protection against thieves is when they think you are home. This clock can turn on a lamp or radio in your absence, thus creating the impression of a person being present in the apartment or house.

Did your clock arrive and not work after plugging it into the outlet?
There is a battery in the device that disconnects the system when it runs out, you need to plug the clock into a socket to charge the battery, and then press the reset button for a few seconds. Then the clock will start running. If not, write to us and we will resolve the complaint.

Features of the ZSD-16 digital clock:
They allow a total of 10 adjustable time programs, which can be used to turn on and off your connected appliances.

Advantage of ZSD-16: SWITCHED PHASE CONDUCTOR!

Functions of the ZSD-16 time switch:
10 adjustable time programs
16 combinations of days or blocks of days. This function allows you to run time programs on specific days, e.g. Sat–Sun, Mon–Wed–Fri, etc.
Possibility of manual or automatic control.
12/24 hour cycle option.
Another function is the summer time setting. By switching to this function, 1 hour is automatically added to the set time.
The device contains a rechargeable battery that will keep it running for more than 100 hours after the power is disconnected.

When purchasing a new device or when the battery is discharged, the charging cycle takes approximately 12 hours.

Examples of using ZSD-16:
irrigation, circulation pump, aquarium lighting

Technical parameters
Power supply: 230V / 50Hz
Power consumption: 0.00 W
Switched wire: phase
Switched power: 3500 W
Inductive load: 0 VA to 2 VA
Switching element: relay
Min. adjustable time: 1 min
Accuracy: +/- 1 min/month
Backup battery: Yes (NiMh 1.2V/ >100 hrs.)
Degree of protection: IP20
Operating temperature: 0°C to 50°C

Technical data:

• - possibility of setting different programs for each day of the week
• - total of 8 programs
• - it is possible to use 16 preset combinations of days or groups of days (one combination counts as only one program!), i.e. the program is valid, for example, only for weekdays or only for the weekend or for Friday to Sunday, Monday to Saturday, etc.
• - SUMMERTIME function for easy transition from winter time to summer time and vice versa
• - RANDOM function for switching at random intervals (e.g. switching on lights during absence - protection against thieves)
• - choice of time display format 12/24
• - built-in backup battery to power the clock will keep the set programs in memory even during a power outage
• - possibility of turning the appliance on or off manually (by pressing a button)
• - max. switched power: 3500W
• - max. load current: 16A
• - max. current for inductive load (motors, etc.) 3A
• - LED indication of on state
• - safety socket
• - ON/OFF switch
• - operating temperature: -10°C to 40°C

You can find the instructions for use and other documents in the section: "Downloads" !!!
